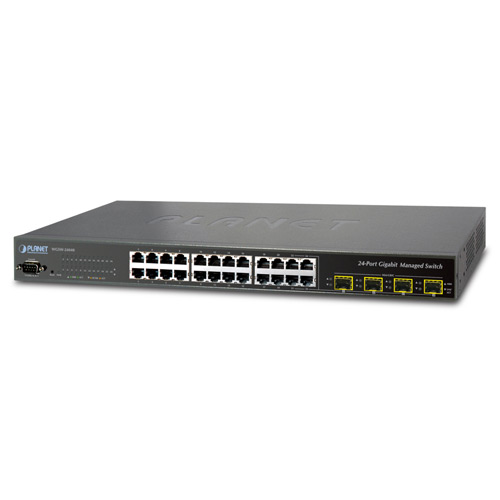

PLANET WGSW-24040R L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Switch with 48V DC Redundant Power

Physical Port

24-port 10/100/1000BASE-T RJ45 copper
4 100/1000BASE-X mini-GBIC/SFP slots , shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
Console interface for basic management and setup

Layer 2 Features

High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm control support
- Broadcast / Multicast / Unknown-unicast
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4094 VLAN IDs
- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- Voice VLAN
- GVRP (GARP VLAN Registration Protocol)

Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol(STP)
- IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- BPDU Guard

Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 10 trunk groups, up to 16 ports per trunk group
- Up to 32Gbps bandwidth (full duplex mode)
Provides port mirroring (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices.

Harga : Rp. 6.000.000,-/unit

Note :
* Garansi 1 tahun untuk kerusakan pabrik (kerusakan karena kelalaian user, force majeur,arus pendek & kena petir tidak garansi
