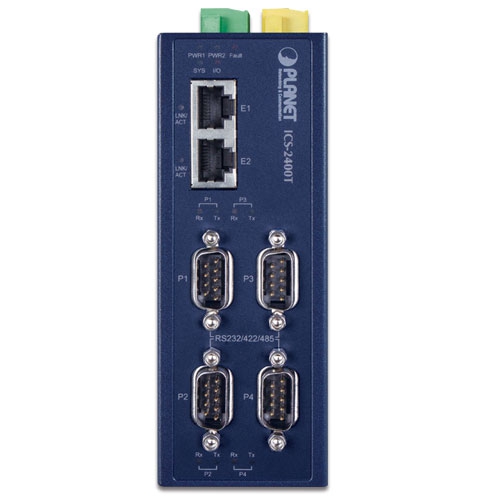

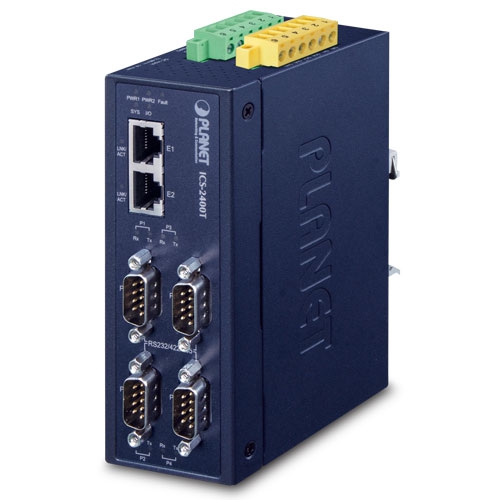

PLANET ICS-2400T Industrial 4-Port RS232/RS422/RS485 Serial Device Server

https://forumupload.ru/uploads/0018/3f/02/107/t585333.jpg
https://forumupload.ru/uploads/0018/3f/02/107/t611989.jpg
https://forumupload.ru/uploads/0018/3f/02/107/t555285.jpg

Fitur-fitur :

Serial Interface

Four DB9 interfaces support RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
Asynchronous serial data rates up to 921600bps
Data mode including VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair and Serial Telnet modes

Ethernet Interface

2-port 10/100BASE-TX RJ45 interface with auto MDI/MDI-X function
Ethernet ports support Ethernet switch or cascading operation for easy wiring

Management

IPv4 and IPv6 dual stack management
Remote Management Interfaces
- IP-based Web management
- Telnet console management
- Windows-based VCOM utility supports searching, monitoring and configuration setting
IP NTP (Network Time Protocol) and DNS management
Standard TCP/IP interface and versatile operation modes
Software Protocol supports ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
Serial Operation mode selected via management interface
Pair Connection mode for connecting two serial devices over a network
Allows a max. of 4 hosts to be accessed as TCP client mode
Firmware upgrade via HTTP protocol
Accessible IP security control to prevent illegal users
Event notification
- Remote Syslog server
- SNMP trap
- Built-in buzzer
- Relay output alarm
- Digital Output (ICS-2400T)
DHCP client for IP address assignment
PLANET Smart Discovery utility automatically finds the client devices on the network

Industrial Case and Installation

IP40 metal case
DIN-rail and wall-mount designs
Redundant power design
- 12 to 48V DC, redundant power with polarity reverse protect function
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature

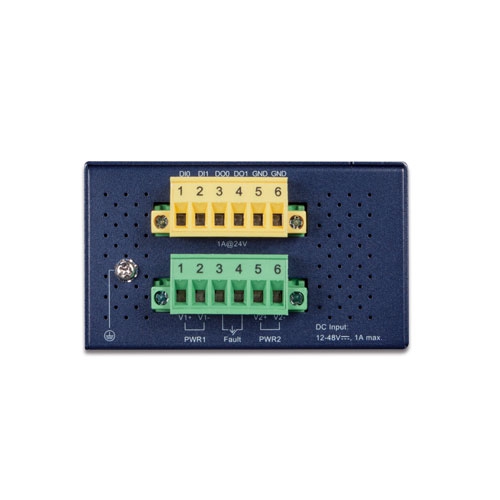

Digital Input and Digital Output

2 Digital Input (DI)
2 Digital Output (DO)
Integrate sensors into auto alarm system

Harga : Rp.  6.250.000,-/unit

Note :
* Garansi 1 tahun untuk kerusakan pabrik (kerusakan karena kelalaian user, force majeur,arus pendek & kena petir tidak garansi)
