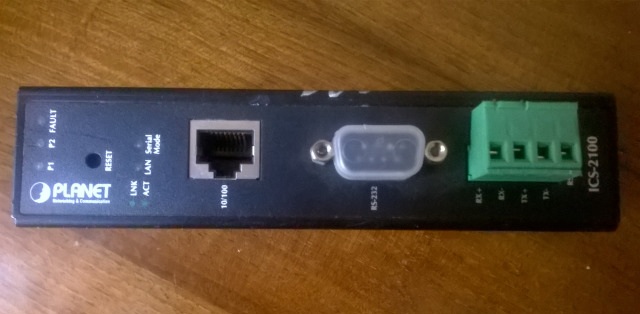

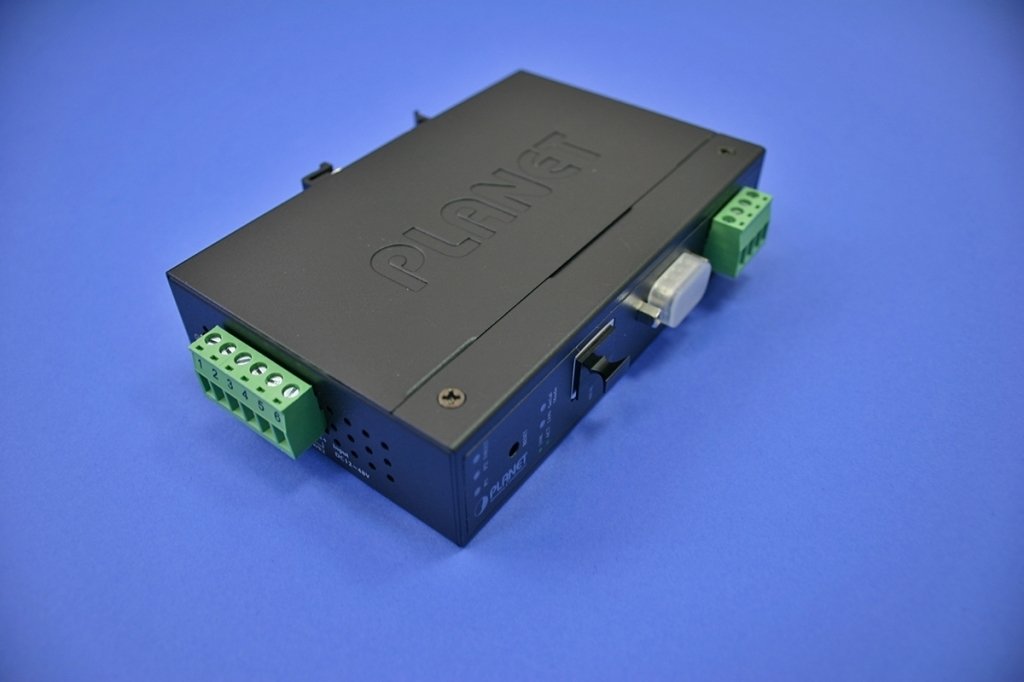

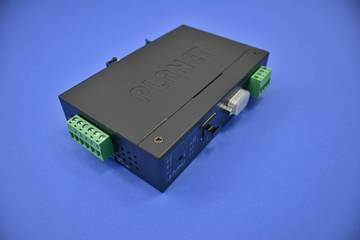

Kami Appointed-Partner untuk produk-produk PLANET menawarkan Industrial Serial to Ethernet yang handal dengan spesifikasi sebagai berikut :

Serial Interface
One RS-232 port and one RS-422/485 port to 10/100Base-TX MediaConversion
Cost effective solutions of RS-232/ RS-422/ RS-485 for Ethernet applications
Supports RS-232 with DB9 interface, 4-wire RS-422 or 2-wire RS-485 with terminalblock operation
Asynchronous serial data rates up to 230400bps

Ethernet Interface
Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX standard
Supports auto MDI/MDI-X function on RJ-45 Port for ICS-2100

Smart Functions
Standard TCP/IP interface and versatile operation modes
Software Protocol supports ARP, ICMP,TCP/IP, UDP, HTTP server, DHCP client, Telnet
server/client
Built-in IP-based Web interface for remote management
Serial Operation mode selected via Web management
Pair Connection mode for connecting two serial devices over a network
PLANET Smart Discovery utility automatically finds the client devices on thenetwork
Firmware upgrade via HTTP protocol

Hardware
LED indicators for easy network diagnostics
Reset Button on the front panel for resetting to factory default

Industrial Case / Installation
IP30 metal case protection
DIN rail and wall mount design
12 to 48V DC, redundant power with polarity reverse protect function andconnective removable terminal block for master and slave power
Supports EFT protection 6000 V DC for power line
Supports 6000 V DC Ethernet ESD protection
-10 to 60 degrees C operating temperature

Harga : Rp. 1.500.000,-/unit

Note :
* Paket tidak berisi adaptor, karena produk industrial
* Silahkan anda bertanya produk sebelum membeli produk tersebut, kami siap selalu membantu
* Garansi 1 tahun untuk kerusakan pabrik (kerusakan karena kelalaian user, force majeur,arus pendek & kena petir tidak garansi)
